For Rebound 4.9.3, diodes are already soldered. Info on that installation for older PCBs is here. DIY and older PCBs may require installation of a controller/adapter combo. More info on that process here. Fully-assembled PCBs are tested before leaving Montsinger HQ, but it's good to know how to do a tweezer test. Fully-assmbled PCBs come with USB port pre-soldered. The installation process for Rebound DIY is here. You are currently viewing the testing page. Click here to return to the main guide.

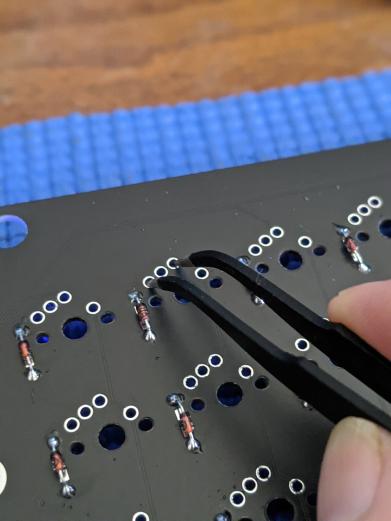

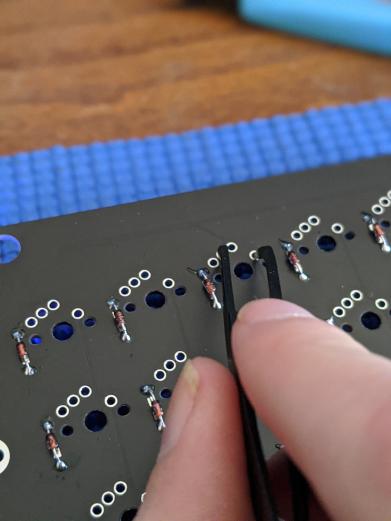

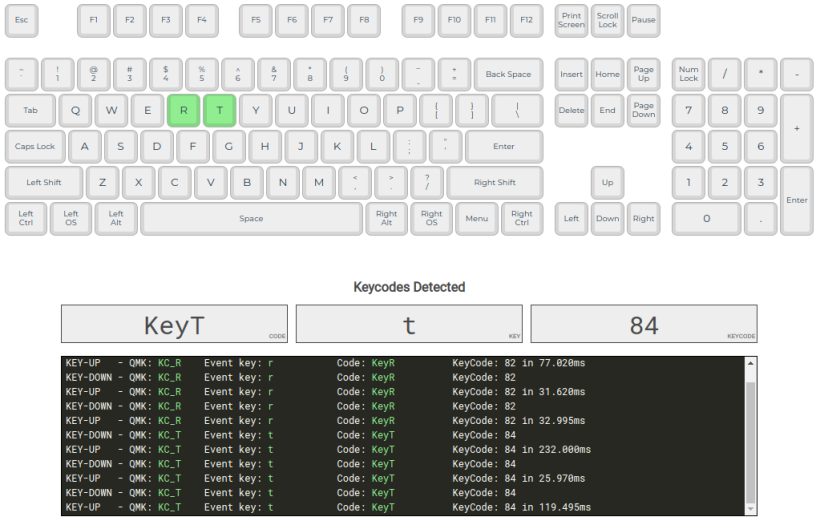

. . . diodes all soldered — I like to do a tweezer test at this point. QMK Configurator makes it easy. These pads should register the Choc signal. These pads are for MX switches. . . . Return to the main guide
